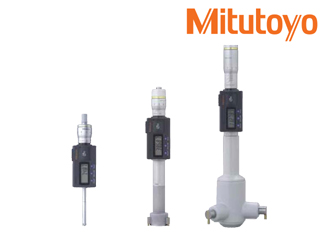

Series 468
FEATURES
- TiN-coated contact points provide excellent durability and impact resistance and allow the instrument to measure to the bottom of a blind hole.(up to 100mm/4"models)
- Large LCD readout.
- Functions available: Presetting, Zero/ABS, power On/Off Data hold, Data out put, Error alarm, Battery replacement alarm.
- With Ratchet Stop for constant force.
- Can measure deep holes by attaching an Extension rod(optional).
- Setting rings for origin point setting are optional.
- Supplied in fitted plastic case up to 100mm / 4”. Over 100mm / 4” supplied in wooden case.
Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.001mm or .00005"/0.001mm (over 5" models: .0001"/0.001mm)
Contact point:TiN-coating
Measuring method: Three-point method
Display: LCD
Battery: SR44 (2 pcs.),
938882
Battery life: Approx. 8 months under normal use
Function
Zero-setting, Data hold, Data output, Preset, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
Optional Accessories
05CZA662: SPC cable (1m / 40”)
05CZA663: SPC cable (2m / 80”)
04AZB157: Mounting plate for stand
156-101: Stand
952322: Extension rod 100mm / 3.94” For range 6-12mm / .275 - .5” models
952621: Extension rod 150mm / 5.9” For range 12-20mm / .5" - .8” models
952622: Extension rod 150mm / 5.9” For range 20-50mm / .8" - 2” models
952623: Extension rod 150mm / 5.9” For range 50-300mm / 2" - 12” models
