Series 526
FEATURES

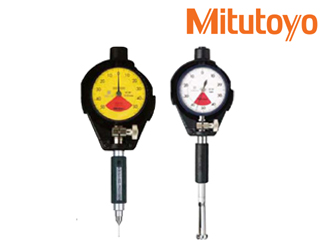

These Bore Gages measure diameters of small holes. The radial displacement of split-ball contact is converted to axial displacement of measuring rod, which is shown on the dial indicator.
Technical Data
Accuracy:4µm/.00016”
Indication stability:2µm/.00008”
Graduation:0.01mm,0.001mm, .0005 or.00001"
Optional Accessory
215-120-10 Bore gage stand.
