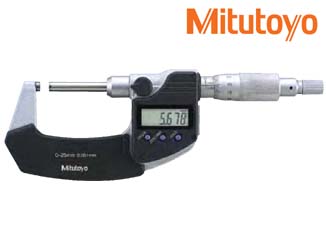

Series 406
FEATURES
- with a standard bar except for 0-25mm/0-1in model.
- With SPC output
- Supplied in a fitted plastic case.
Technical Data
Accuracy: Refer to the list of specifications.
Resolution*: 0.001mm or .00005"/0.001mm
Flatness: 0.3µm / .000012”
Parallelism: 3µm / .00012” for models up to 75mm / 3”* 4µm / .000016” for models over 75mm / 3”* 1.6µm / .000063” for models up
to 50mm / 2”** 2µm / .00008” for models over 50mm / 2”**
Measuring faces: Carbide tipped
Display*: LCD
Battery*: SR44 (1 pc.),
938882
Battery life*: Approx. 1.2 years under normal use
Function of Digital Model
Origin-set, Zero-setting, Data hold, Data output, inch/mm
conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
Optional Accessories for Digital Model
05CZA662: SPC cable with data switch (1m / 40”)
05CZA663: SPC cable with data switch (2m / 80”)
