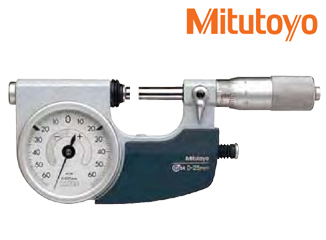

Indicating Micrometer - Series 510

• Retractable anvil with indicator for threewire measurements of pitch diameter of precision screws, and parallelism
• measurements.
• With a standard bar except for 0-25mm /0-1" model.
• IP protection level: 54
• Supplied in fitted plastic case.


Technical Data
Spindle feed error: 3µm/ .00012"Dial indication accuracy: 1µm / .00004"
Dispersion of indication: 0.4µm/ .00002"
Graduation: 0.001mm or .0001"
Dial reading: 0.001mm or .00005"
Flatness: 0.3µm/ .000012"
Parallelism: 0.6µm/ .000024" for models up to 50mm / 2"
1µm/ .00004" for models over 50mm / 2"
Measuring force: 5-10N (500 - 1000gf)
Measuring faces: Carbide tipped

---

Optional Accessories
04AZA124: 16mm / .63" workpiece stopper
(not available for 25mm / 1" model)
04AZA125: 14mm / .55" workpiece stopper
04AZA126: 14mm / .55" workpiece stopper
