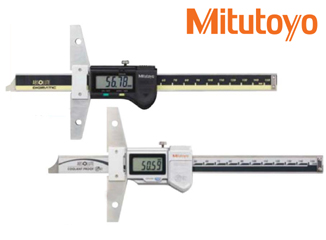

Series 571
FEATURES
- ABSOLUTE Digimatic Depth Gage can keep track of the origin point, once set, for the life of the battery.
- Base and measuring faces are hardened and micro-lapped.
- Optional wider extension base are available.
- With SPC data output.
Technical Data
Resolution: .0005”/0.01mm or 0.01mm
Repeatability: .0005”/0.01mm
Display: LCD
Length standard: ABSOLUTE electromagnetic induction-type linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 20,000 hours (3 years) under normal use Dust/Water protection level: IP67
Function
Origin-set, Zero-setting, Automatic power on/off, Data output, inch/mm conversion (on inch/metric models only)
Alarm: Low voltage, Counting value composition error
Optional Accessories
05CZA624: SPC cable with data switch (40” / 1m)
05CZA625: SPC cable with data switch (80” / 2m)
