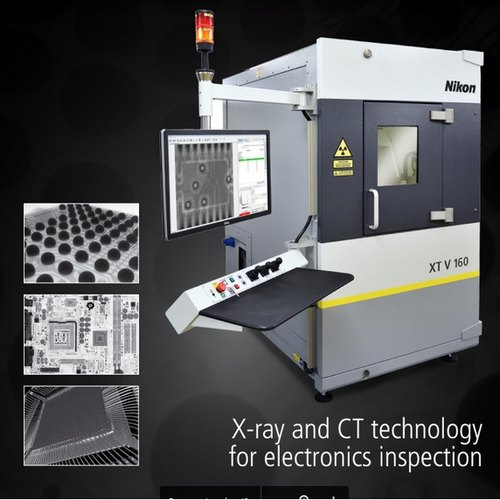

XT V 160 ELECTRONICS X-RAY SYSTEM
ID:XT-V-160

The Nikon XT V 160 X-Ray machine is specifically designed for use in production lines and defect analysis laboratories. With the precision joystick, the system user controls the 5-axis sample controller. Real-time X-rays allow users to intuitively navigate complex printed circuit boards and electronic components, and quickly find defects. In automatic test mode, samples can be tested at the highest throughput.

Hotline
  • Application
  • Specifications

XT V 160  High-quality PCB inspection system



The XT V 160 is specifically designed for use in production lines and failure analysis laboratories. With a precision joystick, system users control the 5-axis sample manipulator. Real-time X-ray allows them to intuitively navigate complex printed circuit boards and electronic components and quickly trace defects. In automated inspection mode, samples can be inspected at highest throughput.

The outstanding benefits of the NIKON XT V 160 . PCB X-Ray Machine

  1. Leading proprietary micro-focus source technology
  2. Fast automated component testing through customizable macros
  3. Intuitive joystick navigation drives X-ray images in real time
  4. 4K Ultra HD display to combine real-time measurement and analysis
  5. Low cost of ownership and maintenance with open tube technology
  6. Safety is the design criterion
  7. CT and X.Tract (laminography) ready

Real concentric images

The operator selects an area of ​​interest (ROI) to test and places it in the center of the screen. Under any combination of pan, tilt, and magnification, the ROI remains completely locked to the center of the field of view.

True concentric imaging works over the entire scan area of ​​the controller. ROI remains locked, regardless of the sample's position on the workbench, ideal for inspecting around single layer, dual layer clusters and complex packages.

Proprietary 160 kV NanoTech source with submicron . spot size

Tightly controlled nanofocal X-ray points and the latest digital imaging technology ensure that the XT V 160 produces sharp images with micrometer-level features even in the most challenging samples. The advanced electromagnetic lens is computer controlled to ensure that the image remains in focus at all kV settings and that the target does not burn out when using high power.

True parallel tracking for the best view of BGA analysis

A combination of tilt and rotation is required for the best unobstructed view when testing the BGA. The next step is to scan along the rows to check for errors. For the standard operator, this requires simultaneous operation of 3 axes – requiring considerable skill on behalf of the operator.

Nikon's true parallel tracking maintains the X and Y axes parallel to the BGA, allowing rows to be scanned with an X or Y axis. This feature is enabled as part of the system control concept. advanced system.

Low cost of ownership and maintenance with open tube technology

Nikon's development of the open X-ray tube has reduced the size, weight, and cost of the system while maintaining outstanding quality and performance. By introducing the patented maintenance-free cable HT generator, preventive maintenance has been dramatically reduced making the long-term cost of ownership significantly lower than any similar system. anyhow.

At just two square meters, the mass of the XT V 160 provides a wide scanning area of ​​406×406 mm (16” x16”) in a single system.

Ready for CT applications (optional)

The XT V 160 is preconfigured to turn the system into a CT system. In this way, 3D images can be reconstructed to get a better insight into components and sub-clusters.

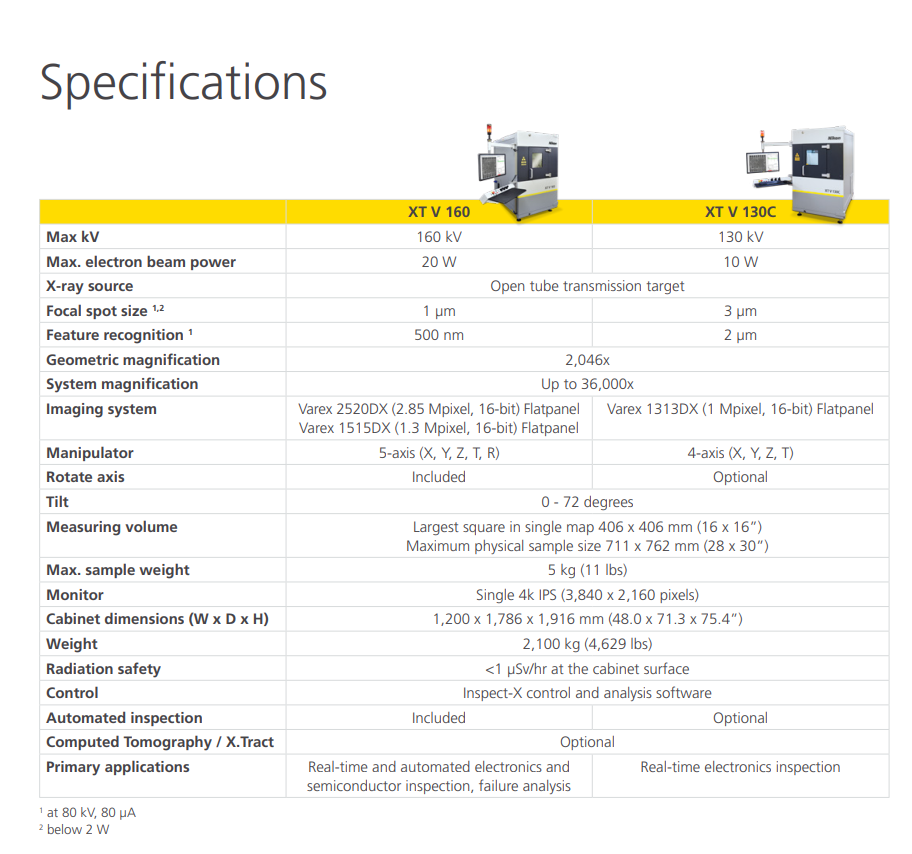

Max kv 160 kV
Power rating 20 W (radiography), 10 W (CT)1
X-ray source Open tube transmission target
Focal spot size 1 µm1 (below 2 W) rising to 10 µm depending on power
Defect recognition capability 500 nm
Geometric magnification 2.5x -2,400x
System magnification Up to 36,000x
Imaging system (Standard) 1.45 Mpixel 12-bit camera with dual field 4"/6" image intensifier
Imaging system (Option) Varian 1313DX (1 Mpixel, 16-bit) Flatpanel
Varian 2520DX (3 Mpixel, 16-bit) Flatpanel
Dexela 1512 (3 Mpixel, 14-bit) Flatpanel
Manipulator 5-axis (X, Y, Z, T, R)
Rotate axis Included
Tilt 0 - 75 degrees
Measuring volume Largest square in single map 406x406 mm (16x16")
Absolute max 711x762 mm (28x30")
Max. sample weight 5 kg (11 lbs)
Weight 1.935 kg (4,266 lbs)
Monitor Single 4k IPS (3840x2160 pixels)
Cabinet dimensions 1200 x 1786 x 1916 mm  (48.0x71.3x75.4")
(WxDxH )
Radiation safety <1μSv/hr at the cabinet surface
Control Inspect-X control and analysis software
Automated inspection Included
Computed Tomography Optional CT and/or X.Tract
Primary applications Real-time and automated electronics and semiconductor inspection, failure analysis
(BGA, μBGA, flip-chip and loaded PCB boards)
