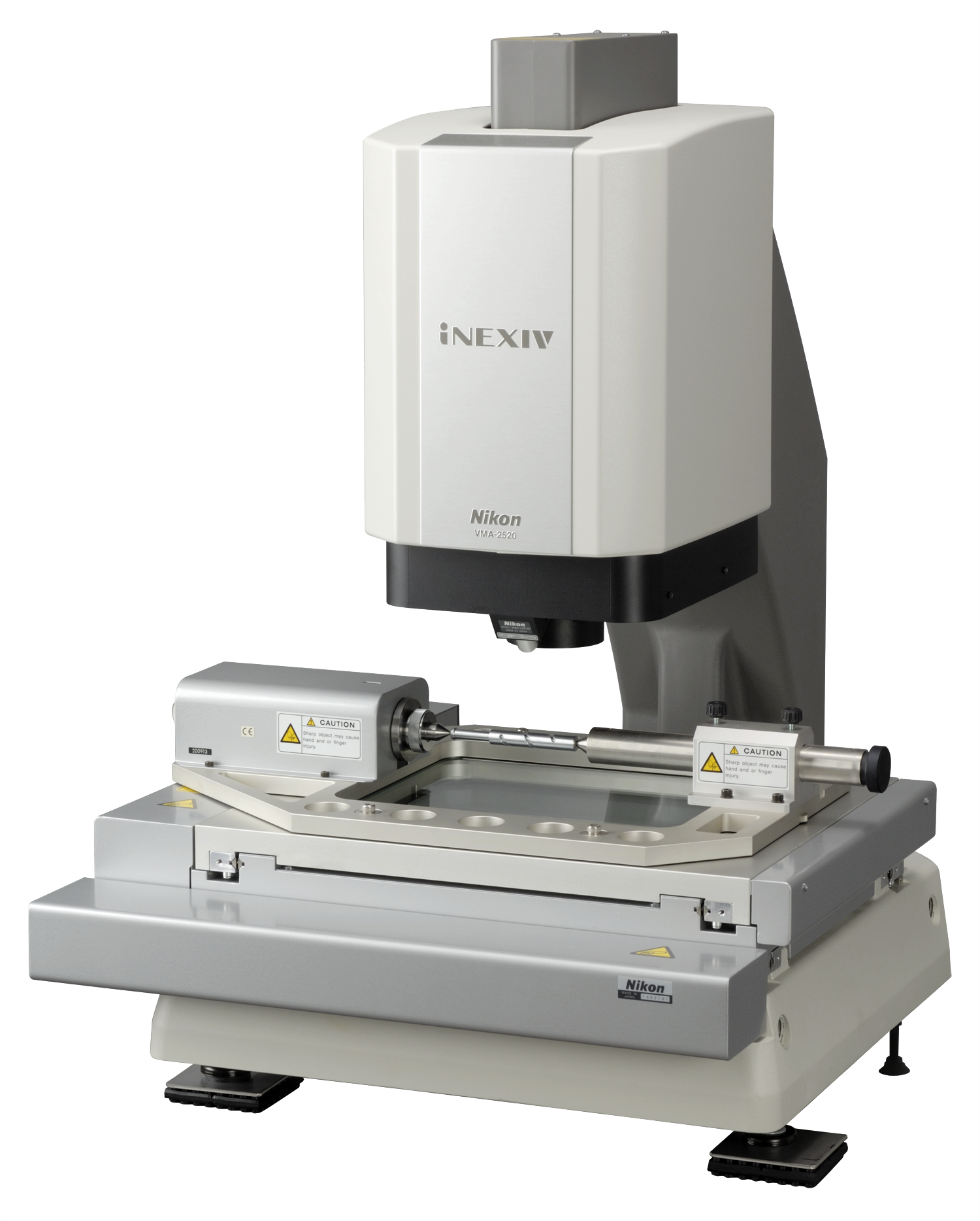

Non-contact 3D measure VMA-2520
ID:Nikon VMA-2520

Wide FOV, fast speed, versatility

Nikon's non-contact three-dimensional meter NEXIV's VMA series

Based on a low-magnification optical zoomhead

It can flexibly respond to samples suitable for wide FOV, high-speed AF, etc.

it is formed at a lower price point than VMZ-R.

In addition to measurements, auto-image merges, EDF, 3D profilers, etc.

Various functions can be configured and used universally.

Hotline
  • Application
  • Specifications

Features

Measure wide FOV at high speed












 Key features



- X, Y, Z STROKE: 250 X 200 X 200 (mm)



- English support



- 10x high-speed zoom lens



- Low magnification, optical zoom head with wide field of view (Type A, 1.5x)



- 8-split ring lighting





- Fast processing speed



- Various functions













Wide field of view, basic low-magnification zoom head: Type A










  The low-magnification zoom head Type A is equipped with a Nikon 10x lens. (NA: 0.11)



It is equipped with ring lighting with an angle of 18º,



8 Split ring lighting is available.



It can cope with a variety of samples, including main LED coaxial (reflection/transmission) lighting.

A FOV.jpg
























Long operating distance of 73.5mm







   A long operating distance of 73.5 mm minimizes the possibility of collision with the sample.



It is also ideal for measuring large steps, deep holes, etc.













Fast and accurate vision AF



Fast and repeatable vision AF is ideal for measuring irregularly surfaced samples.


















Offers a variety of lighting environments



- Coaxial LED lighting



- LED Ring lighting



- Transmitted LED lighting




















Laser unit mountable (optional)





  Additional laser units with operating distances of 63 mm can be configured further.



Even at low magnification, you can use laf (laser autofocus) function with good repeatability.



Specifications

 Stroke (X x Y x Z)

250 x 200 x 200 mm (10 x 8 x 8")

Minimum readout

0.1 μm

Maximum workpiece weight

 15 kg (up to 5 kg accuracy guaranteed)

Measuring uncertainty

XY MPEE1: 2+8L/1000 μm

Z measurement uncertainty

Z MPEE1: 3+L/50 μm

Camera

1/3-in. 3CCD color Progressive scan (B/W optional)

Working distance

 73.5 mm (63 mm with LAF)

 Auto focus

 Vision AF and optional Laser AF

Power source

 100-240 V, 50/60 Hz

 Power consumption

 5-2.5 A

Dimensions & weight (W x D x H)

565 x 690 x 740 mm (minimum height), 72 kg
