Specifications

Optics	CFI60/CFI60-2 system
Observation image	Reversed image
Observation method	Brightﬁeld and polarization (with MA P/A simple polarizer/analyzer set)
Focusing	Focusing nosepiece (ﬁxed stage), coaxial coarse/ﬁne adjustment knob with 8.5-mm stroke (Coarse adjustment of 37.7mm per turn, ﬁne adjustment of 0.2mm per turn)
Nosepiece	Brightﬁeld 5-position nosepiece
Stage	MA-SR-N Rectangular 3-plate Stage N: 50×50 mm stroke (includes two stage inserts (ø20mm and 40mm opening) and coaxial control handle on the right side The 3-plate design allows entire top surface to move. Optional Stage inserts: MA-SRSH1 Specimen Holder 1 with (ø15mm opening or MA-SH3 Specimen Holder 3 with 2mm to 32mm adjustable opening MA-SP-N Plain Stage N: 188×310mm - Includes two stage inserts (1) clear acrylic stage insert with ø30mm opening, (2) clear acrylic stage insert with crescent opening (width 30mm) to allow clearance for rotation of high magniﬁcation objectives Optional stage inserts: MA-SRSH1 Specimen Holder 1 with 15mm opening or MA-SH3 Specimen Holder 3 with 2mm to 32mm adjustable opening Accepts Attachable Mechanical Stage TI-SM TS2-S-SM Mechanical Stage: 126mm×78mm stroke, handle can be attached on the right or left side of the plain stage Optional Specimen Holders to ﬁt Attachable Mechanical stage: MA-SH1-N Specimen Holder 1N (ø15mm opening) MA-SH2-N Specimen Holder 2N (ø30mm opening), or C-S-HU Universal Holder (30mm to 65mm adjustable opening)
Illuminator	Internal power supply white LED light source, condenser built-in (lever operated), ø25mm ﬁlter can be inserted
Binocular body	Built-in Siedentopf binocular, 45 inclination angle and 50 to 75-mm interpupillary adjustment, attachable camera port, eyepiece/Port: 100/0:0/100
Power consumption (max.)	15W
External dimensions	229×551×404 mm (W×D×H)
Weight	Approx. 10kg

Eclipse MA100N - Introducing a durable, user-friendly inverted microscope with superior image quality, a small footprint and great cost performance.

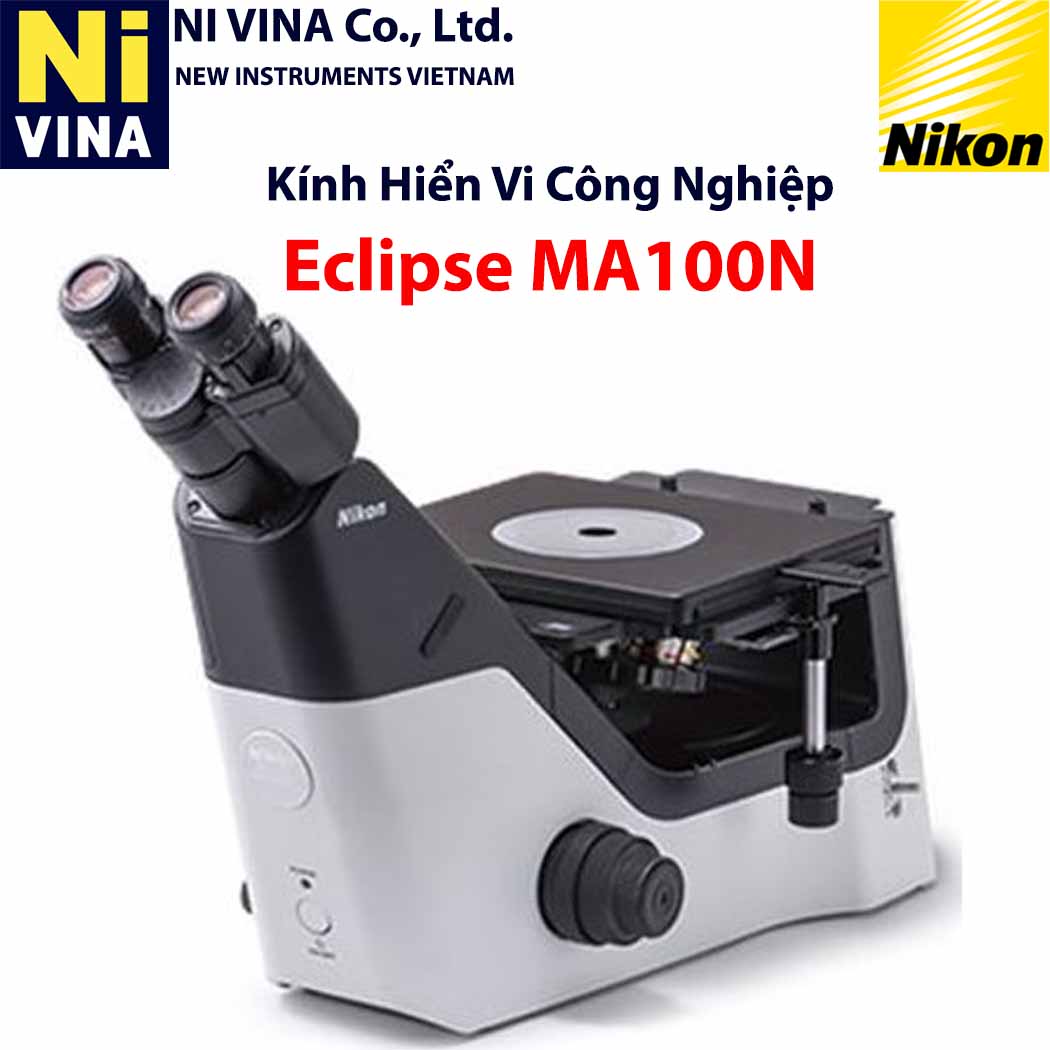

ECLIPSE MA100N
(LED illumination model)The MA100N is a compact inverted microscope designated for bright ﬁeld and simple polarizing observations. Responding to the requests from manufacturing and QA/QC sections in a variety of industries, Nikon developed this simple but durable model which enables high contrast image observation and capture. Further, the high intensity LED illumination reduces the need for frequent lamp replacement.

Applications

Metallurgy, Metal manufacturing
Cast iron nodularity and flake analysis, Grain sizing
Surface examination
Antennae, Telescope optics
Telecom & electronics
Mobile phones, shavers & watches

Benefits & features

Illumination

Employment of high-intensity LED illumination (Eco-illumination)

Compared to conventional halogen illumination, these high intensity LED sources need only about one third of consuming electricity and last approximately 30 times longer. The MA100N ensures stable sample observation with uniform color temperature even in different light intensity.

Compact body

Redesign to 11% smaller than the conventional models

The MA100N is a model designated for LED illumination, which enables users to save about 11% of footprint and have more installation choices

Stage

Stable control even with heavy samples - A newly developed stage boasting superior durability

Nikon developed the new MA-SR-N Rectangular Stage especially for the MA100N. The three-plate structure gives the microscope superior control and durability for observation of heavy samples, such as a grinder resin mounted samples.
